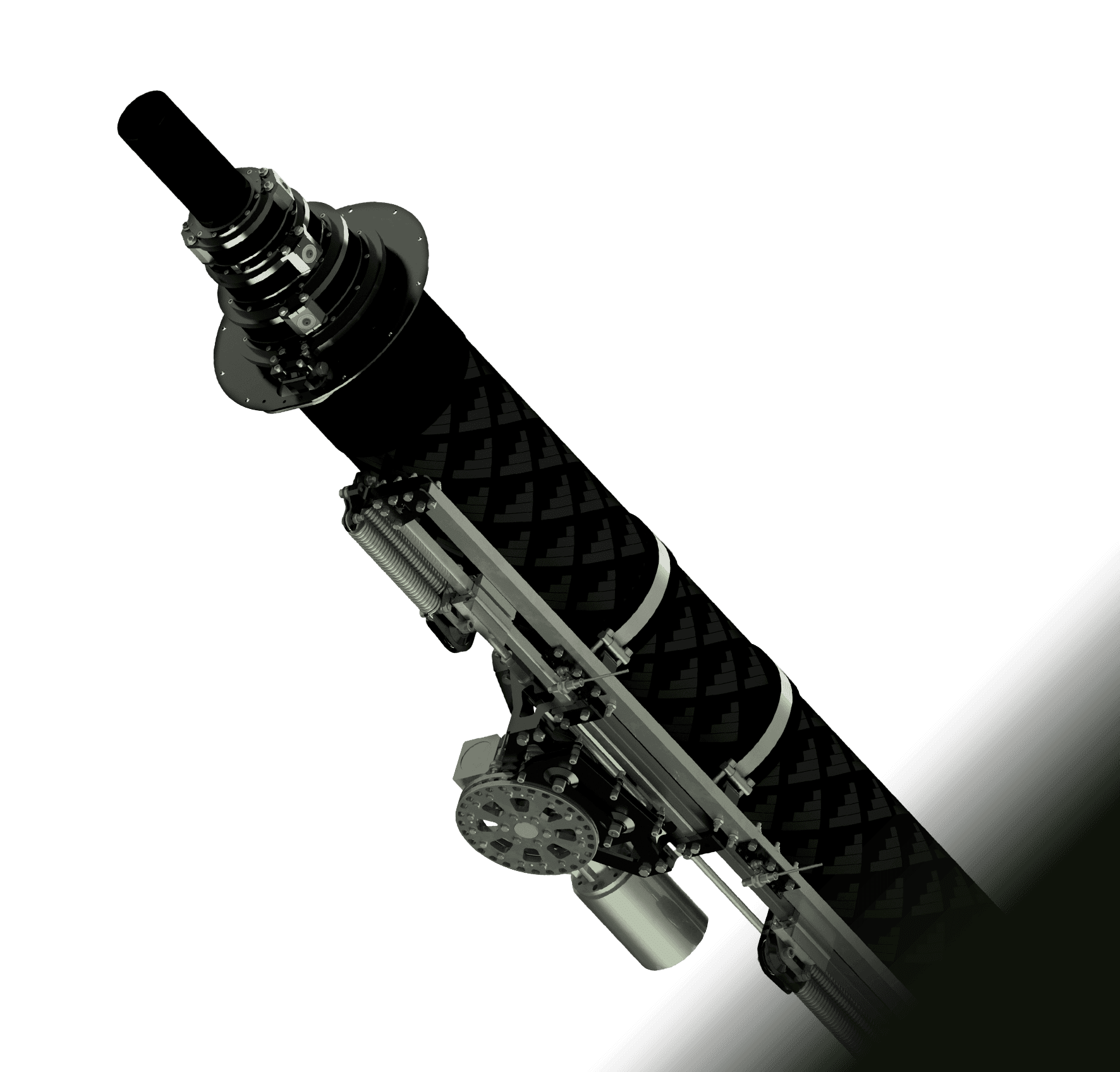

Highly durable and lightweight telescopic mast solution. Have full control even while driving.
Find out moreHeight
1500–8500 mm as required
Load capacity
25 - 150kg as required
Engine
24V, performance as required for extension speed
Operation during dynamic vehicle movement
Yes

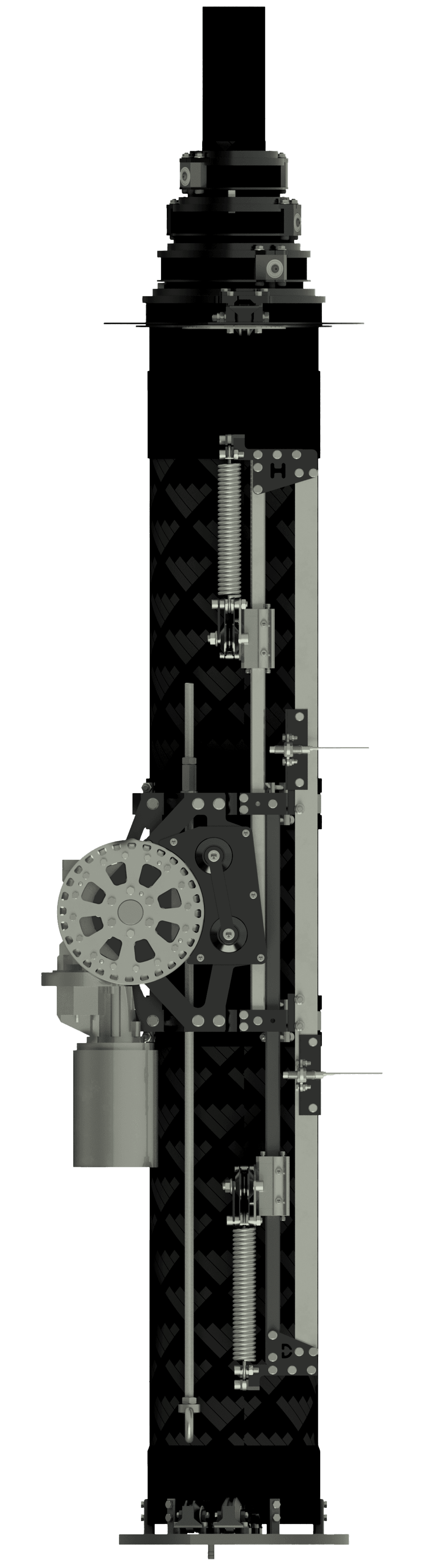

Equipped with a single-rope winch and anti-vibration system.
Thanks to the unique properties of the tube system, the mast can be operated dynamically while the vehicle is in motion at high operating speeds.
Optimized thermomechanical properties significantly reduce susceptibility to conditions such as mast icing.

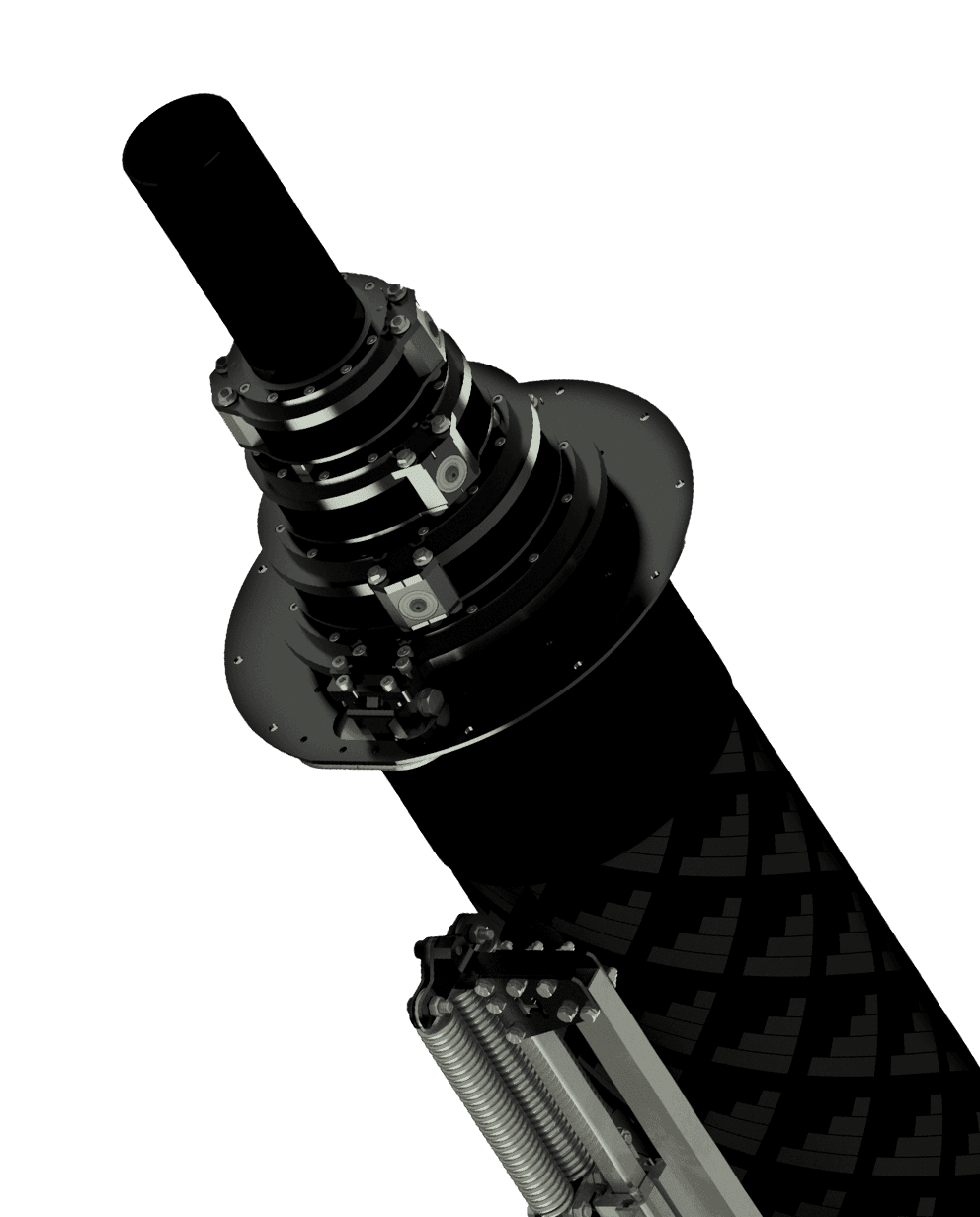

The tubes are made using axial winding technology with optimized thermomechanical properties. High rigidity and strength significantly enhance operational characteristics. The flanges between the tubes do not lock; the tubes "hang" on a cable and are equipped with a pin to prevent rotation.
Composite material construction through our automated AFL process achieves double the axial rigidity at a quarter of the weight.
The unique tube system allows the mast to operate dynamically while the vehicle is in motion at high speeds as per customer requirements.

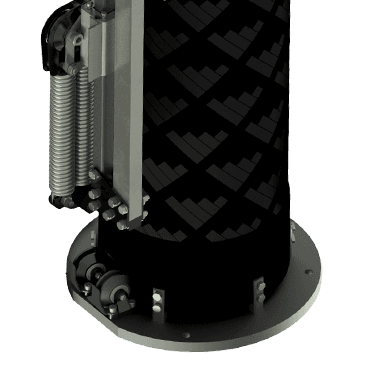

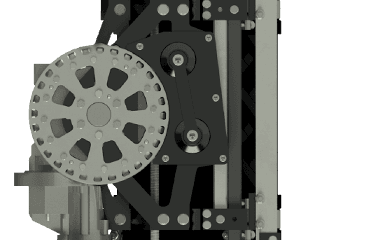

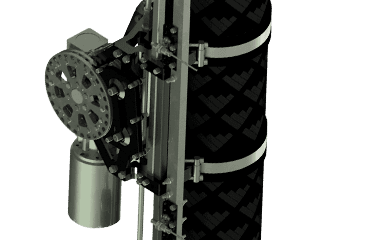

The winch uses a single cable for lifting and lowering. A spring system dampens vibrations transmitted to the lifted device and mechanically limits maximum load states, eliminating the need for drive current protection.
We design the highest quality composite masts for the most demanding conditions, offering excellent control efficiency both stationary and in motion. Our expertise in carbon fiber technology and precision manufacturing allows us to deliver masts that redefine industry standards for strength, functionality, and reliability. With nearly 30 years in the industry, we push the boundaries of design solutions to meet strict military requirements, ensuring every mast exceeds our defense partners' strategic and operational needs.
We are a company focused on the production and technology of composite solutions. We design and manufacture various standard and custom lightweight composite components made from carbon fiber and epoxy. Additionally, we offer our advanced winding technology as a complete automated system.
Allows Compolift to lock at any height without power for increased safety for personnel and payload.
Allows Compolift to lock at any height without power for increased safety for personnel and payload.
Allows Compolift to lock at any height without power for increased safety for personnel and payload.
Allows Compolift to lock at any height without power for increased safety for personnel and payload.
We thrive on engineering challenging masts and strive to exceed our customers’ expectations.
